led driver emergency
Model No: EMF-02ZZZDO-BY

2W EUROPE Emergency Driver for Led Panel Lighting

Output power:2w
Output Voltage:13-50VDC
Input Voltage:200-240VAC,50-60Hz
Operating Temp:32°F-122°F(0°-50°）
Battery:Lithium
Recharge:24Hrs
Delivery :
EXW factory
minimum order :
1 piece
Supply Ability :
20000piece / Month
Stock Time :
20Day
Country of Origin :
China
Quantity :
add to cart
Contact Now

SPEC

IFICATION
Input Voltage.....................................................................(Universal) 209-240VAC, 50/60Hz
Input Power (120V/277V)..................................................................3 Watts (max)
Output Voltage.............................................................................13-50VDC
Input Current.................................................................................30mA(max)
Output Power....................................................................................2 Watts
Power Factor......................................................................................•0.85
EMI (Radiated and Conducted)...................................FCC Class A (charge and EM modes)
Surge Protection..........................................................Meets ANSI/IEEE C62.41.2-2002
Emergency Time.............................................................................180 minutes
Recharge Time.............................................................................24 Hrs
Battery............................................................................Lithium battery
Weight................................................................................0.35lbs(0.161kg)
Approval......................................................................CE Standrad, RoHS COMPLIANT

ADVANTAGES

Optimized for higher voltage LED luminaireswith 10-50VDC driver output.High Effciency Performance meets CEC
effciency standards (CEC-400-2014-009-CMF).
Increased illumination output designed for elevated fxtures.


FEATURES

Long-life, maintenance-free, high temperaturerecyclable Lithium battery
5-Year Warranty.
Rated for use in plenum, damp location, and so on.
closed and gasketed fixturesRoHS Compliant

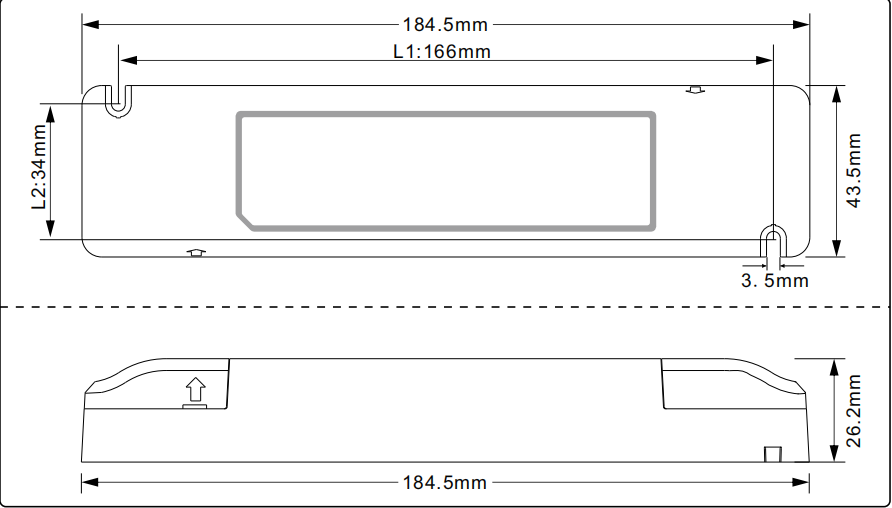

DIMENSION





WIRING DIAGRAM

SELF-Diagnostic

The integrated self-diagnostic circuitry will automatically conduct monthly 30-second and annual 90-minute tests to verify proper
emergency capability per Life Safety Code requirements.

Press the test button to cut the power to the AC driver and switch the system to emergency mode. Release the test button to return to
normal mode. Switch off the circuit breaker to simulate a full power outage.

NFPA 101, Life Safety Code outlines the following schedule:

Monthly - Insure that the test button light is illuminated. Conduct a 30 second discharge test by depressing the test button.
The LED load should operate at reduced output.

Annually - Insure that the test button is illuminated. Conduct a full 90 minute discharge test. The unit should operate as intended
for the duration of the test.

“Written records of the testing shall be kept by the owner for inspection by the authority having jurisdiction.”
