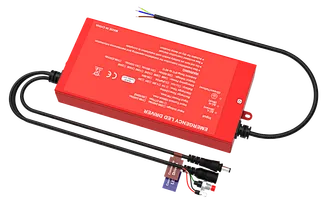

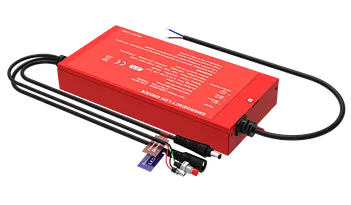

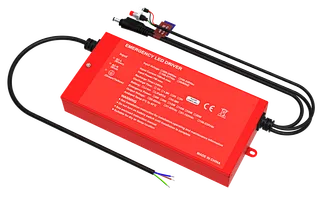

CE Standard emergency driver 4W/8W/15W
Output Voltage:25-230 VDC
Input Current: 100mA(MAX)
Input Power: 7W(MAX)
Input Volatege: 100-240VAC, 50-60Hz
Emergency Time: 180minutes
Battery:Lithium
Weight: 1.64lbs(0.74kg)
Input Power (120V/277V)..................................................................7 Watts (max)
Output Voltage....................................................................................25-230VDC
Input Current.......................................................................................100mA
Power Factor.......................................................................................0.85
EMI (Radiated and Conducted).........................................FCC Class A (charge and EM modes)
Surge Protection...............................................................Meets ANSI/IEEE C62.41.2-2002
Emergency Time.............................................................................180 minutes
Recharge Time.............................................................................24 Hrs
Battery....................................................................................Lithium battery
Approval...........................................................................CE Standard, RoHS COMPLIANT
effciency standards (CEC-400-2014-009-CMF).
Increased illumination output designed for elevated fxtures.
5-Year Warranty.
Rated for use in plenum, damp location, and so on.
closed and gasketed fixtures RoHS Compliant
WIRING DIAGRAM
SELF-Diagnostic
The integrated self-diagnostic circuitry will automatically conduct monthly 30-second and annual 90-minute tests to verify proper
emergency capability per Life Safety Code requirements.
Press the test button to cut the power to the AC driver and switch the system to emergency mode. Release the test button to return to
normal mode. Switch off the circuit breaker to simulate a full power outage.
NFPA 101, Life Safety Code outlines the following schedule:
Monthly - Insure that the test button light is illuminated. Conduct a 30 second discharge test by depressing the test button.
The LED load should operate at reduced output.
Annually - Insure that the test button is illuminated. Conduct a full 90 minute discharge test. The unit should operate as intended
for the duration of the test.
“Written records of the testing shall be kept by the owner for inspection by the authority having jurisdiction.”
