Model No: EMUFO-XX170-YYII 25W/40W WET

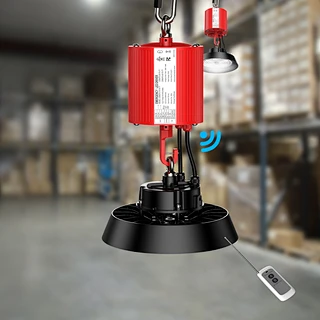

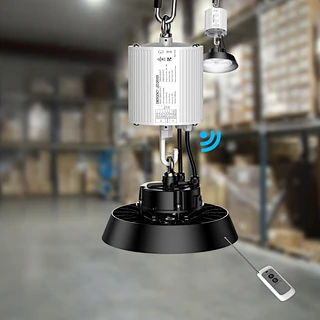

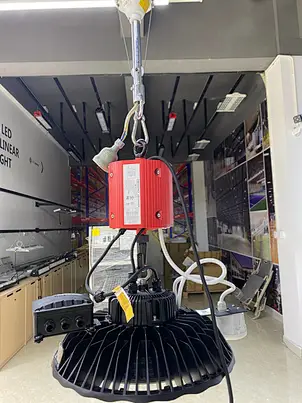

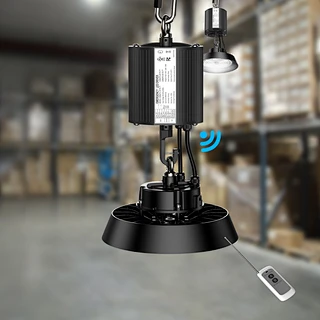

170V DC UFO High Bay Light Emergency LED Driver 40W
UL 924 Listed for field or factory installation.
Certiifed for CEC Title 20.
Designed for use wit hround high bay fixtures with integrated.
NFPA101(Life Safety Code)
IP65 Rated.it is protected against dust and water ingress.
Waterproof 2-in-1 LED test button and indicator light included.
Certiifed for CEC Title 20.
Designed for use wit hround high bay fixtures with integrated.
NFPA101(Life Safety Code)

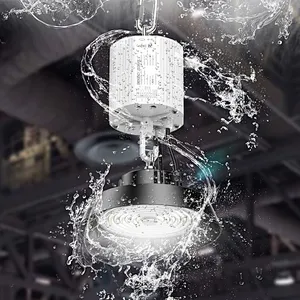

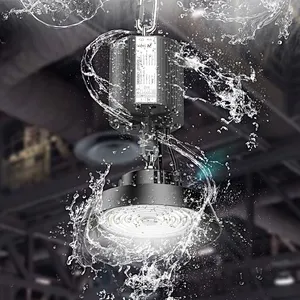

IP65 Rated.it is protected against dust and water ingress.
Waterproof 2-in-1 LED test button and indicator light included.
Delivery :
EXW FACTORY
minimum order :
1 piece
Supply Ability :
10000piece / Month
Stock Time :
15Day
Country of Origin :
CHINA
Quantity :
Subscribe to our Newsletter
Product summary
UL Listed for US and Canada Listed to UL924 and tested to CSA 22.2 No. 141
For Field or Factory Installation
(Indoor and Damp)
emergency Time 90 Minutes
Full Warranty 5 Years
Universal Input Voltage 100-347 VAC, 50-60 Hz
AC Input Current 200mA Maximum
Output Voltage 170 VDC
Output Power 25/40W
Test Switch/Charging Indicator Light IP65 rated for ingress protection to dust and water jets.
Test Switch Assembly is UL2043 Plenum-Rated
Battery High-Temperature
Lithium Battery
Recharge Time 24 Hours
Temperature Rating Ambient: 0°C to +50°C (32°F to 122°F) Case: Tc (Max): 65°C
Dimensions L 6.8'' x H5.47” (173 mm x 139mm)
Weight Without Conduit – 3.7lbs(1.7kg)/3.9 lbs (1.8kg)
