Model No: EMACT15-TT/EMACT25-TT/EMACT40-TT

LED Emergency Driver | 15W/25W/40w Battery Backup Output | Field Installable

Test button and plate (included) mounts to single gang J-Box to manually test fixtures
Wires directly to incoming AC power, no need to interrupt connection from driver to LED load
Light output in emergency mode determined by LPW of fixture (lumen output divided by wattage) x 15W/25W/40W EB driver output

Delivery :

EXW factory

minimum order :

1 piece

Supply Ability :

20000piece / Month

Stock Time :

20Day

Country of Origin :

China

Quantity :

add to cart

Contact Now

All Products

Subscribe to our Newsletter

Highlights:

UL Listed for field or factory installation
Certified for CA Title 20.
NFPA101(Life Safety Code)
Waterproof 2-in-1 LED test button and indicator light included.
5 Year Warranty
ROHS Compliant.

SPECIFICATION:

Input Voltage.........................................................(Universal) 100-347VAC, 50--60Hz
Input Power (120V/277V)..................................................................12 Watts (max)
Output Voltage..................................................................................DC170V
Input Current......................................................................................200mA(MAX)

Output Power................................................................................15W/25W/40 Watts
Power Factor................................................................................................0.85
EMI (Radiated and Conducted)...............................FCC Class A (charge and EM modes)
Surge Protection.......................................................Meets ANSI/IEEE C62.41.2-2002
Emergency Time............................................................................90 minutes
Charge Time.................................................................................24 Hour Recharge
Battery...................................................................................Lithium battery(0° to 50° C)

Weight................................................................................... 0.9kg/1.09kg/1.22kg
Approval................................................................cUL Listed for factory and ﬁeld installation

ADVANTAGES:

Optimized for higher voltage LED luminaireswith 170VDC driver output.High Effciency Performance meets UL Listed
effciency standards.
Increased illumination output designed for elevated fxtures
UL Listed for factory and feld installationSelf-sensing output voltage operates variousproduct types reducing product SKUs foremergency options.

FEATURES:

UL 924 Listed for U.S. and CanadaFive mounting confgurations available
Long-life, maintenance-free, high temperaturerecyclable Lithium battery
5-Year Warranty.
Rated for use in plenum, damp location, and en-
closed and gasketed ﬁxturesRoHS Compliant

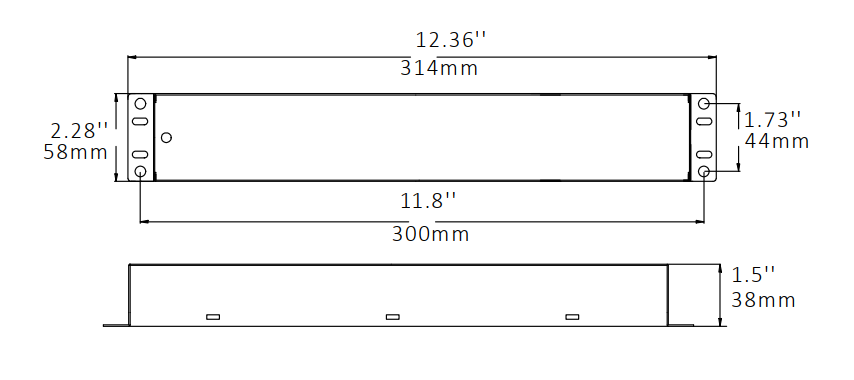

DIMENSION:

Case-12.3'6'X2.28''X1.5''(314mmX58mmX38mm)MountingCenter-11.8''(300mm)FlexibleConduit13''(330mm)

SELF-Diagnostic

The integrated self-diagnostic circuitry will automatically conduct monthly 30-second and annual 90-minute tests to verify proper
emergency capability per Life Safety Code requirements.

Press the test button to cut the power to the AC driver and switch the system to emergency mode. Release the test button to return to
normal mode. Switch off the circuit breaker to simulate a full power outage.

NFPA 101, Life Safety Code outlines the following schedule:

Monthly - Insure that the test button light is illuminated. Conduct a 30 second discharge test by depressing the test button.
The LED load should operate at reduced output.

Annually - Insure that the test button is illuminated. Conduct a full 90 minute discharge test. The unit should operate as intended
for the duration of the test.

“Written records of the testing shall be kept by the owner for inspection by the authority having jurisdiction.”
