Model No: EMUFO-XXAAADI-YY 40W WET

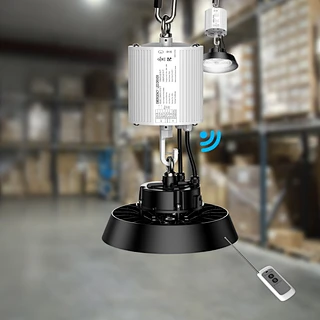

480V DC UFO High Bay Light Emergency LED Driver 40W
UL 924 Listed for field or factory installation.
Certified for CEC Title 20.
Designed foe use with round high bay fixture with intergrated.
NFPA101(Life Safety Code)
IP65 Rated. it is protected against dust and water ingress.
5-years warranty.
Certified for CEC Title 20.
Designed foe use with round high bay fixture with intergrated.
NFPA101(Life Safety Code)
IP65 Rated. it is protected against dust and water ingress.
5-years warranty.
Delivery :
EXW FACTORY
minimum order :
1 piece
Supply Ability :
10000piece / Month
Stock Time :
15Day
Country of Origin :
CHINA
Quantity :
Subscribe to our Newsletter
Product summary
UL Listed for US and Canada Listed to UL924 and tested to CSA 22.2 No. 141
For Field or Factory Installation
(Indoor and Damp)
Emeregncy Time 90 Minutes
Full Warranty 5 Years
Universal Input Voltage 277-480 VAC, 50/60 Hz
AC Input Curren 200mA Maximum
Output Voltage 310-500 VDC
Output Power 40W
Test Switch/Charging Indicator Light IP65 rated for ingress protection to dust and water jets.
Test Switch Assembly is UL2043 Plenum-Rated
Battery High-Temperature
Lithium Battery
Recharge Time 24 Hours
Temperature Rating Ambient: 0°C to +50°C (32°F to 122°F) Case: Tc (Max): 65°C
Dimensions 6.8'' x 5.47” (173 mm x 139mm)
Weight Without Conduit – 3.96 lbs 1.8KG
