Model No: EMJ-XX170DI-FY 8W/18W/30W

Junction Box Design Led Emergency Driver for Wall pack & Canopy IP65 8W/18W/30W

CEC-Compliant!
Meets Title-20 Efficiency Standards!

Delivery :

EXW factory

minimum order :

1 piece

Supply Ability :

20000piece / Month

Stock Time :

20Day

Country of Origin :

China

Quantity :

add to cart

Contact Now

All Products

Subscribe to our Newsletter

SPECIFICATION

Input Voltage....................................................................(Universal) 100-347VAC, 50/60Hz
Input Power (120V/277V)..................................................................10Watts (max)
Output Voltage..............................................................................DC170VDC
Output Current................................................................0.125A (@25VDC) - 0.1A (@230VDC)

Output Power..................................................................................8,18w,30Watts
Power Factor...................................................................................................0.85
EMI (Radiated and Conducted).................................FCC Class A (charge and EM modes)
Surge Protection..........................................................Meets ANSI/IEEE C62.41.2-2002
Emergency Operation...............................................................................90 minutes
Recharge Time.............................................................................24 Hrs
Battery............................................................................Lithium battery(0° to 50° C)

Weight................................................................................2.6lbs(1.18kg)/2.8lbs(1.28kg)/3.3lbs(1.5kg)
Approval........................................................................cUL Listed for factory and ﬁeld installation

ADVANTAGES

Optimized for higher voltage LED luminaireswith 170VDC driver output.High Effciency Performance meets CEC
effciency standards (CEC-400-2014-009-CMF).
Increased illumination output designedfor elevated fxtures
UL Listed for factory and feld installationSelf-sensing output voltage operates variousproduct types reducing product SKUs foremergency options.

FEATURES

UL 924 Listed for U.S. and CanadaFive mounting confgurations available
Long-life, maintenance-free, high temperaturerecyclable Lithium battery
5-Year Warranty.
Rated for use in plenum, damp location, and so on
closed and gasketed ﬁxturesRoHS Compliant

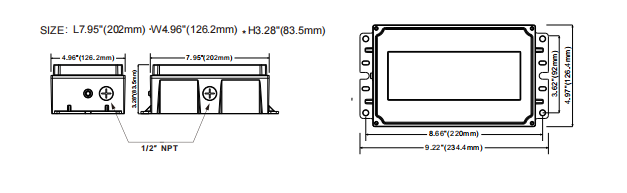

DIMENSION

WIRING DIAGRAM

SELF-Diagnostic

The integrated self-diagnostic circuitry will automatically conduct monthly 30-second and annual 90-minute tests to verify proper
emergency capability per Life Safety Code requirements.

Press the test button to cut the power to the AC driver and switch the system to emergency mode. Release the test button to return to
normal mode. Switch off the circuit breaker to simulate a full power outage.

NFPA 101, Life Safety Code outlines the following schedule:

Monthly - Insure that the test button light is illuminated. Conduct a 30 second discharge test by depressing the test button.
The LED load should operate at reduced output.

Annually - Insure that the test button is illuminated. Conduct a full 90 minute discharge test. The unit should operate as intended
for the duration of the test.

“Written records of the testing shall be kept by the owner for inspection by the authority having jurisdiction.”
