480V DC Emergency Driver Battery Backup for Linear High Bay Light 20W/40W
Meets Title-20 Efficiency Standards
310-500VDC led emergency driver
UL listed
With or without conduit
Field-installable

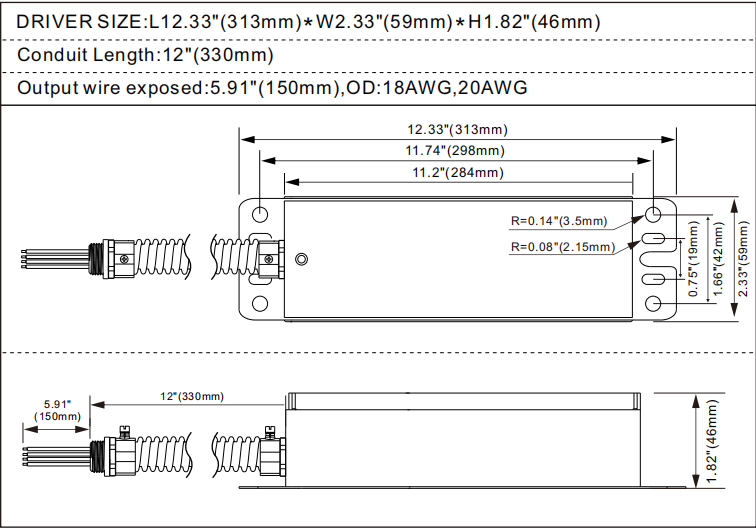

Input Power (120V/277V)..................................................................12 Watts (max)
Output Voltage...................................................................................DC310-500VDC
Input Current..........................................................................................200mA(MAX)
Power Factor...................................................................................................0.85
EMI (Radiated and Conducted)...................................................FCC Class A (charge and EM modes)
Surge Protection..........................................................................Meets ANSI/IEEE C62.41.2-2002
Emergency Time.................................................................................90 minutes
Recharge Time...................................................................................24 Hrs
Battery............................................................................................Lithium battery(0°--50° C)
Approval....................................................................................cUL Listed for factory and field installation
effciency standards.
Increased illumination output designedfor elevated fxtures
UL Listed for factory and feld installation Self-sensing output voltage operates various product types reducing product SKUs for emergency options.
Long-life, maintenance-free, high temperature recyclable Lithium battery
5-Year Warranty.
Rated for use in plenum, damp location, and en-
closed and gasketed fixturesRoHS Compliant
WIRING DIAGRAM
SELF-Diagnostic
The integrated self-diagnostic circuitry will automatically conduct monthly 30-second and annual 90-minute tests to verify proper
emergency capability per Life Safety Code requirements.
Press the test button to cut the power to the AC driver and switch the system to emergency mode. Release the test button to return to
normal mode. Switch off the circuit breaker to simulate a full power outage.
NFPA 101, Life Safety Code outlines the following schedule:
Monthly - Insure that the test button light is illuminated. Conduct a 30 second discharge test by depressing the test button.
The LED load should operate at reduced output.
Annually - Insure that the test button is illuminated. Conduct a full 90 minute discharge test. The unit should operate as intended
for the duration of the test.
“Written records of the testing shall be kept by the owner for inspection by the authority having jurisdiction.”
