Model No: EMBXXFY-ZZZ 8W/18W

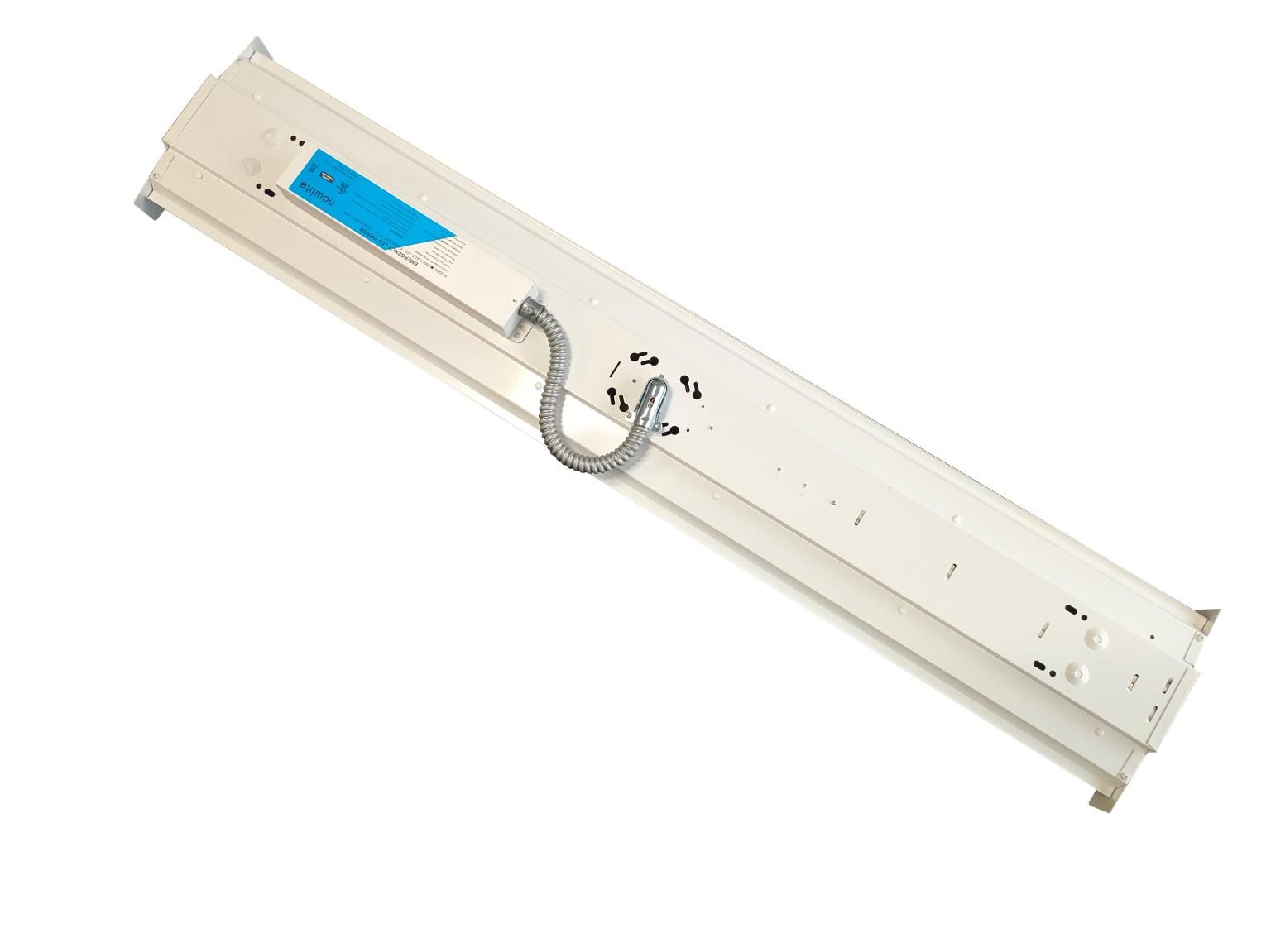

170V DC Emergency Driver for Led Vapor Tight Light 8W/18W

EMB series emergency drive is UL listed led emergency driver for Field andfactory installation that allows the same led fixture to be used for both normaland emergency operation.In the event of a power failuere.the emergency driverswitches to emergency mode and operates the existing fixture to 90 minutes.The unit contains a battery.charge,and converter for individual fixture require-ments.This module will opeate an LED array load at 8w,15w,20w,30w with constantpower at a rated output voltage of 25-230V. The patented constant power design ofthe module maintians the output wattage to LED array even as the system voltagediminished resaulting in a constant illumination level for entire emergency runtime.The integrated self-diagnostic circuitry will automatically conduct 3 monthly 30-minutes and annual 90-minute tests to verify proper emergency capability per
Life Safety Code requirements.

Delivery :

EXW

minimum order :

1 piece

Supply Ability :

20000piece / Month

Stock Time :

20Day

Country of Origin :

china

Quantity :

add to cart

Contact Now

All Products

Subscribe to our Newsletter

Highlights:

UL Listed for field or factory installation
Certified for CA Title 20.
NFPA101 (Life Safety Code)
Waterproof 2-in-1 LED test button and indicator light included.
5 Year Warranty

SPECIFICATION

Input Voltage.......................................................................(Universal) 100-347VAC, 50/60Hz
Input Power (120V/277V)..................................................................10 Watts (max)
Output Voltage..................................................................................170VDC
Input Current..................................................................................150mA(Max)

Output Power..................................................................................8,18 Watts
Power Factor......................................................................................0.85
EMI (Radiated and Conducted)......................................FCC Class A (charge and EM modes)
Surge Protection.............................................................Meets ANSI/IEEE C62.41.2-2002
Emergency Time...............................................................................90 minutes
Recharge Time..................................................................................24 Hrs
Battery.....................................................................................Lithium /LiFePO4 battery(0° --50° C)

Weight............................................................................................0.37kg/0.47kg
Approval............................................................................cUL Listed for factory and ﬁeld installation

ADVANTAGES

Optimized for higher voltage LED luminaires with 170VDC driver output.High Effciency Performance meets UL Listed
effciency standards.
Increased illumination output designedfor elevated fxtures
UL Listed for factory and feld installationSelf-sensing output voltage operates various product types reducing product SKUs for emergency options.

FEATURES

UL 924 Listed for U.S. and Canada Five mounting confgurations available
Long-life, maintenance-free, high temperature recyclable Lithium battery
5-Year Warranty.
Rated for use in plenum, damp location, and so on.
closed and gasketed ﬁxturesRoHS Compliant

DIMENSION

Case-12.3'6'X2.28''X1.5''(314mmX58mmX38mm)MountingCenter-11.8''(300mm)FlexibleConduit13''(330mm)

WIRING DIAGRAM

SELF-Diagnostic

The integrated self-diagnostic circuitry will automatically conduct monthly 30-second and annual 90-minute tests to verify proper
emergency capability per Life Safety Code requirements.

Press the test button to cut the power to the AC driver and switch the system to emergency mode. Release the test button to return to
normal mode. Switch off the circuit breaker to simulate a full power outage.

NFPA 101, Life Safety Code outlines the following schedule:

Monthly - Insure that the test button light is illuminated. Conduct a 30 second discharge test by depressing the test button.
The LED load should operate at reduced output.

Annually - Insure that the test button is illuminated. Conduct a full 90 minute discharge test. The unit should operate as intended
for the duration of the test.

“Written records of the testing shall be kept by the owner for inspection by the authority having jurisdiction.”
